Bar Bending machines are usually used for accuracy of bending angles. The machine is suitable for bending wide varieties of steel bars, TMT, and reinforcement bars etc used in construction. It is capable of bending the toughest rebars and its application is very extensive. The machine is suitable for contractors or construction companies to carry out different operations on rebar according to their requirements. It contains long steel shafts that can require bending before being used in construction. Different types of bender machines are applied for bending the rebar in the construction industry. All the types of bender differ in design and engineering, strength, technology and use. Apart from bending steel bars, the different machines also provide unique functions and capabilities based on the task that is needed to perform. It can be used for construction industry for scaffolding safety hooks, ceiling hook, concrete as well as in the railway industry including railway clips, etc.
Advantages of rebar bending machines
Bar bending makes it possible for workers to target every other aspect of the job, and enable the device to achieve this tedious work. Its advantages include;
Manufactured with electrical and mechanical components that perform the bending task in a structured manner
Increases the speed of your work and cuts down the time taken for bending
Facilitates to doing multiple jobs in a day and gives you more time for other work.
Reduces the chances of accidents and further injuries due to its speedy cutting ability. The latest models have safety options that help to manage the heat and pressure during cuts.
They are highly portable and easily moveable
Enables you to do multi-task jobs within a short period as it has high capacity cutting tools
The bending equipment, compactly structured achieves accurate bending
Can bend in wide varieties of arcs between 0 to 180 degrees for various construction purposes
Speeds up the operations while offering greater quality in bending
Automatic bend TMT bars into different angles between 0°and 180°according to different needs
Bend TMT bars with different diameters

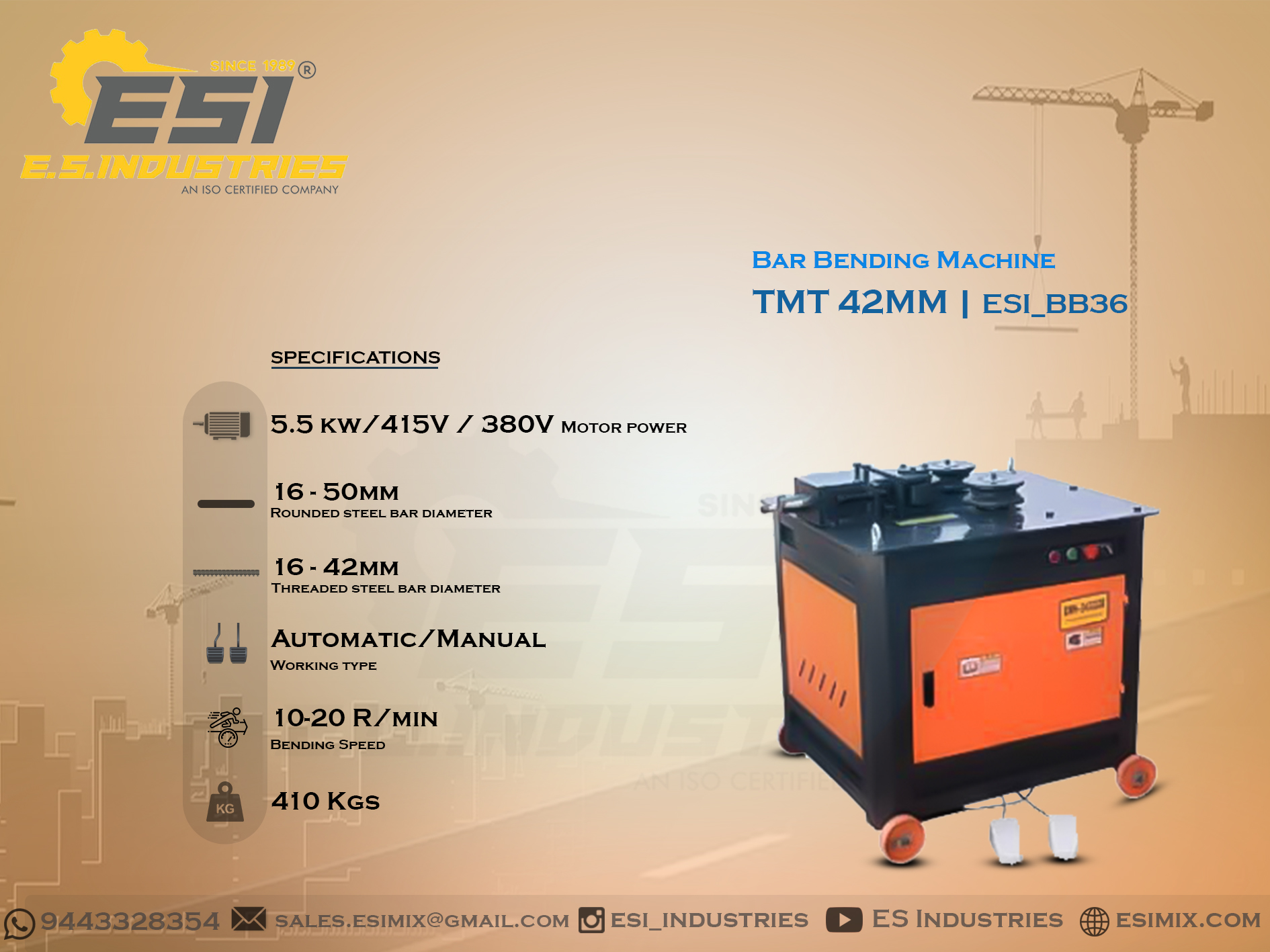

Bar Bending Specification
Key feature
Input Voltage (Phase/Current):Â Three Phase 50-60 Hz
Diameter (Round Bar): 16-50 ⌀ mm
Diameter (Threaded Steel) : 16-42 ⌀ mm
Diameter of Working Disc :Â Â 360mm
Adjustable Bending Speed : 10-20 R/min
Working Type : Automatic / Manual
Motor Power : 5.5 kw/415V / 380V
Motor RPM :Â 1440r/min
Padels :Â Â 2 No
Dimensions : 800×550×800mm
Weight : 410 kgs
